The DWP22X is a high-performance Dante interface panel that seamlessly converts two Dante channels to analog audio outputs and two analog audio inputs to the Dante network. The DWP22X-UA model is designed for US-style double-gang back boxes, while the DWP22X-EU is tailored for European mounting back boxes.

To set up, simply connect the RJ45 port to an Ethernet switch using a Cat5 cable, then use Dante Controller to route low-latency signals to and from other devices on the same Dante network. This ensures efficient and reliable audio transmission across your network.

Dante Interface Panel Mic/Line 2 Inputs x 2 Outputs Main Features:

• Provides Dante Interface for Two Inputs / Outputs

• Two Standard XLR MIC or LINE Audio Channels Convert to Dante Network

• MIC/LINE selectable on Each Input

• Adjustable MIC/LIne Gain from -20 dB to +20dB for Each Input Channel

• Switchable 48V Phantom Power On Each Input for Condenser Microphone

• Each Audio Input Signal/Clip LED on Front Panel

• Two XLR Balanced Audio Output Line Level from Dante Network

• Two Output Channels on Rear Panel (corresponding to two XLR outputs)

• High Resolution 24 Bit Converts Analog to Digital and Digital to Analog

• LEDs Indicate the Status for Power and Network Sync on Front Panel

• Powered by External 24VDC Power Supply or PoE

• Normal Operation with PoE Enable Network Switch

FHBAVTEC  Dante Interface Mic/Line 2 Inputs x 2 Outputs Specification

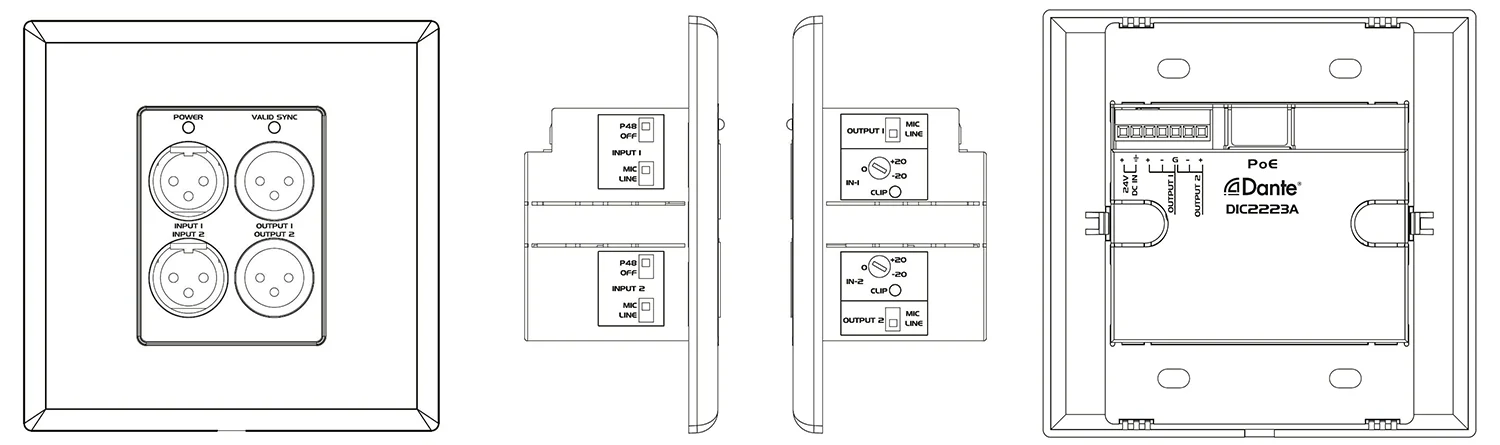

FHBAVTEC Dante Interface Panel Mic/Line 2 Inputs x 2 Outputs Operation

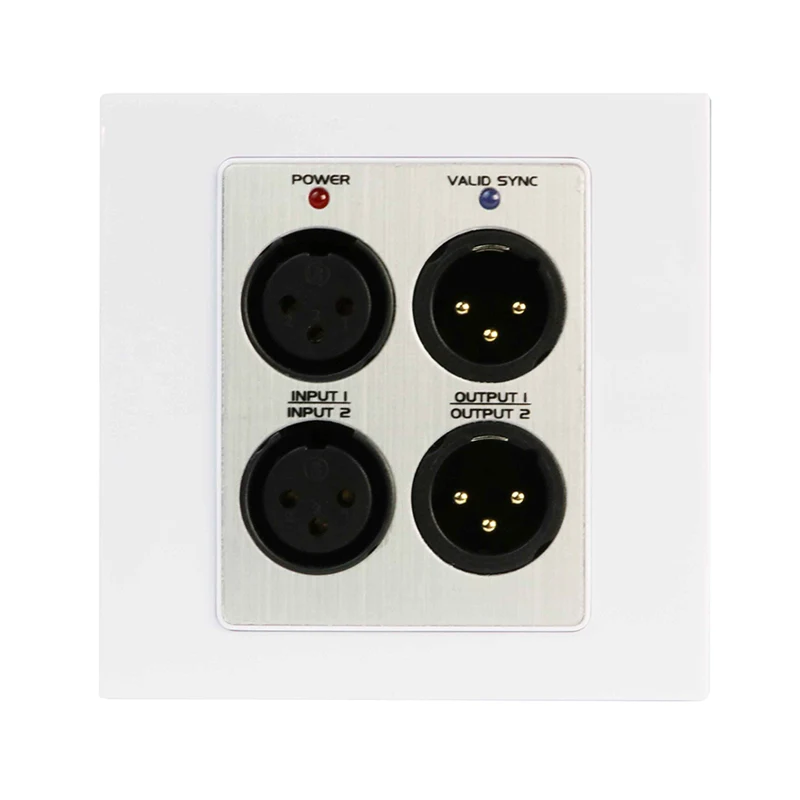

1. Two XLR inputs, accept MIC or Line audio signal.

2. Two XLR outputs, selectable for MIC or Line audio signal.

3. Power LED indicator.

4. SYNC LED indicates the status of Dante network.

5. Input Selector

Line: Accepts Balanced or Unbalanced Line source.

MIC: Accepts the signal of Dynamic or Condenser microphone.

48V: Provides 48V Phantom power when connecting ondenser microphone.

6. Output Selector :t the outputs to Line or MIC with different Gain range.

7. Input Gain Controls: Adjust the Gain level of input signal on ach input channel.

8. Signal CLIP LED on each input channel

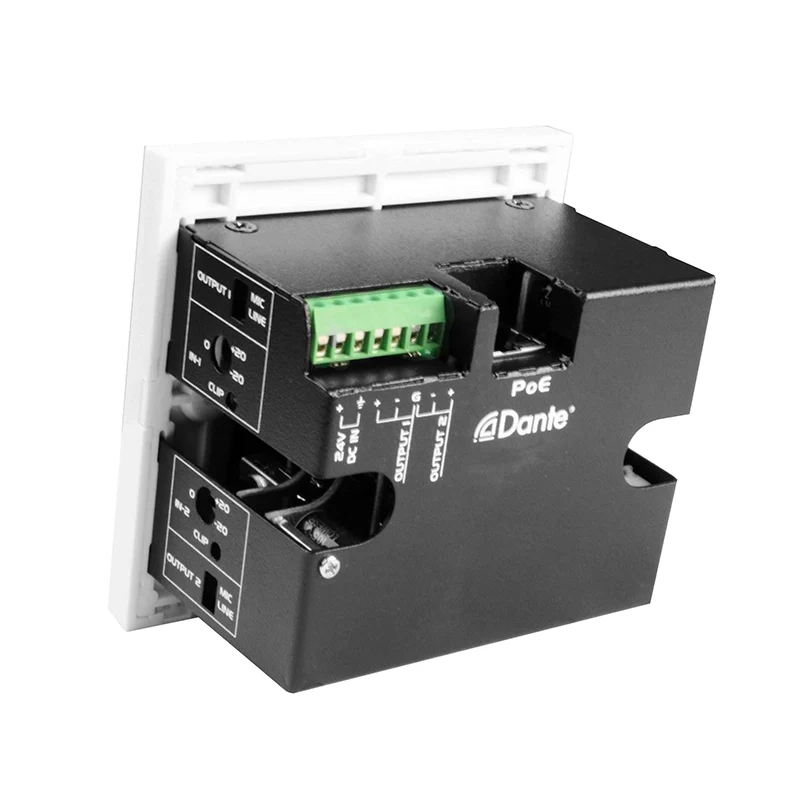

9. Euro Terminal Outputs:

Converts two Dante channels to analogue Line outputs. These two outputs re parallel to the outputs n front panel.

10.RJ45 port: Using Cat5 able to connect to Dante network.

Note: When using PoE enabled network switch, DWP22X could be powered and operation from PoE.

11. Power: Connect DC 24V to 2P terminal block or DC input jack. Note: If DC 24V and PoE are both present to DWP22X, the unit will operate from DC 24V. And when DC 24V removed, the power will switch over to PoE power automatically.

FHBAVTEC Dante Interface Mic/Line 2 Inputs x 2 Outputs Application

The 2CH Dante Interface 2 Mic/Line Inputs x 2 Outputs interface panel is perfect for professional audio applications, such as conference rooms, live sound setups, broadcast studios, and installed AV systems, where reliable Dante-to-analog and analog-to-Dante conversion is required in a compact, rack-free form factor. Its wall-mounted design allows for clean and efficient integration into various environments while maintaining high-quality audio performance.
